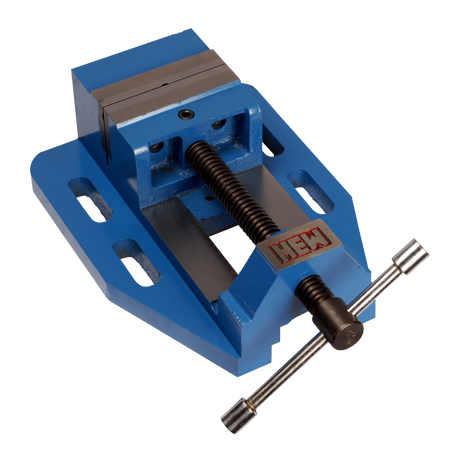

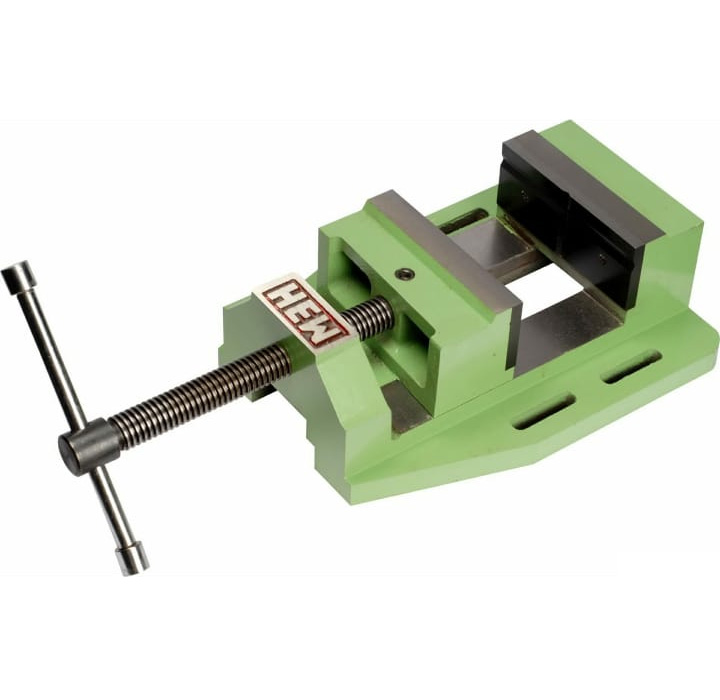

Drill Vice
- "HEW" Heavy duty precision drill vice are made from casting body (C.I.) & Steel grade casting body (S.G.) Unbreakable
- The bed of vice & jaws are with ground finished.
- The jaws of the drill vice are made of mild steel.
- The fixed jaw of the vice is provided with the vertical & horizontal "V" groove to hold the job firmlly.
- Available size : 75, 100, 150, 200 mm.
| Size |
3" (75mm) |
4" (100mm) |
6" (150mm) |
8" (200mm) |
| Width of Jaws |
75 mm |
100 mm |
150 mm |
200 mm |
| Depth of Jaws |
48 mm |
60 mm |
75 mm |
85 mm |
| Opening of Jaws |
75 mm |
100 mm |
150 mm |
200 mm |
| Overall Height |
80 mm |
90 mm |
105 mm |
120 mm |
| Overall Length |
200 mm |
250 mm |
320 mm |
390 mm |
| Apx. Weight in kg. |
6.550 |
10,500 |
21,500 |
33,000 |
